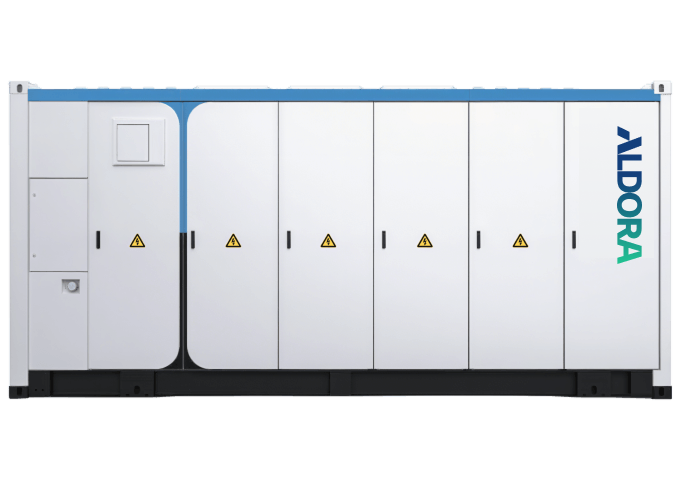

Aldora Energy Vault V5016
5MWh Liquid-Cooled
Energy Storage Container
Key Features
Less space occupied
High-efficiency temperature control system, temperature difference in pack is 2℃, temperature difference in system within 5 ℃. It also can improve the battery life about 15%.
Safe and reliable
The isolated design of electric cabin and battery cabin, which can maximally ensure the safety of system, the intelligent management of batteries health, advance warning pathological batteries.
Flexibility and efficiency
Strong environmental adaptation, support various extreme environment application. The efficiency of heat dissipation, battery life, and DOD are improved simultaneously.
Technical specifications
5MWh 20ft Liquid-cooling BESS | |
|---|---|
| Product Model | Aldora Energy Vault V5016 |
| Product Type | Lithium iron phosphate battery system |
NO. | Items | Specifications |
|---|---|---|
| 1 | Configuration | 12 * (4 * 1P104S) |
| 2 | Rated Energy | 5.016MWh |
| 3 | Rated Voltage | 1331.2Vdc |
| 4 | Voltage Scope | 1164.8 ~ 1497.6Vdc |
| 5 | Rated Charge | 2.5MW |
| 6 | Rated Discharge | 2.5MW |
| 7 | Auxiliary Power (Voltage Scope) | 400V AC±5% 50HZ |
| 8 | Environmental Conditions | Storage Temperature | -35℃ ~ +55℃ |
| Work Temperature | -30℃ ~ +50℃ (≥45℃ derating to use) | ||
| Application Altitude | ≤5000m (derating required ≥2000m) | ||
| 9 | Basic Parameters | Dimension | 6058mm * 2438 * 2896 (L * W * H) |
| Color | RAL 9003 (standard color) | ||
| Weight | ≈42t | ||
| IP Level | IP55 | ||
| Cooling Method | Liquid cooling | ||
| Communication Protocol | PCS: CAN/RS485 EMS: IEC61850 | ||
| Coolant | 50% glycol and water liquid |
